Piggyback Micro AIO FPV Camera 5.8G 40CH VTX Support OSD Smartaudio

Menu

Piggyback Micro AIO FPV Camera 5.8G 40CH VTX Support OSD Smartaudio 400Mw

3-in-1 AIO integrated design, with 600TVL fpv camera, 400mw VTX and dispole antenna, ultra-light weight and small size, best solution for light-weight fix wings.

With OSD to show Power-on time and Input Voltage, so you can know your flight journey very well. AKK Piggyback Micro AIO FPV Camera perfect fit in the AKK drift. Fast and easy FPV setup

Up to 2.5km video transmission range on 400mW

All in one makes it easy.good Cam with remarkable performance with low weight for drone, RC aircraft. besides, Wide voltage input from 7-28V, safe for all kinds of battery or BEC input

Switchable between 0.1mW / 25mW / 200mW / 400mW.

Product Description
AKK Piggyback FPV AIO Camera 5.8G VTX with OSD Integrate
AKK 5.8G Piggyback AIO Micro Camera Adjustable power 0.1mW / 25mW / 200mW / 400mW, Set output power on 0.1mw, can avoid frequency interference. making you enjoy to flight funny and enjoy yourself.
on 400mw outpow can get Long transmission range and less blink. Up to 2.5km video transmission range. It also features a wide viewing angle of 120 degree, which eliminates all the blind spots.
Up to 2.5km video transmission range on 400mW
OSD Integrate
AKK Piggyback AIO FPV Camera 5.8G 40CH VTX Support OSD SmartAudio, that will allow you to display customized call signs(8 character max), and you can know your VTX Brand and channel, frequence, VTX power, input voltage and power-on time through your monitor. will be special useful when using Flight controllers like Kopilot Lite that doesn't have OSD. to show Power-on time and Input Voltage, so you can know your flight journey very well.

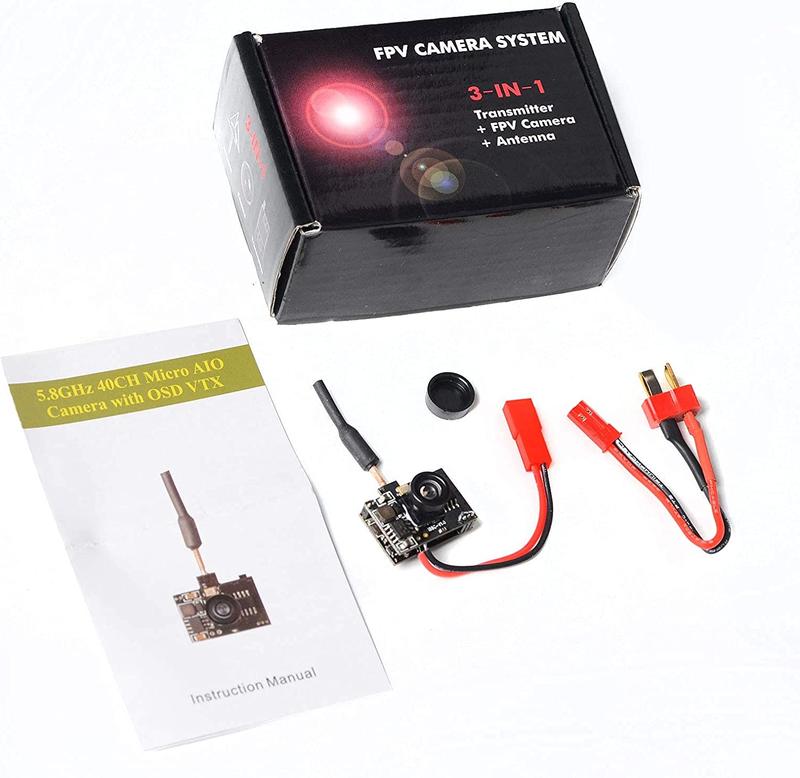

package includes AKK Piggyback Micro AIO FPV Camera (Dipole Brass Antenna) 1x standard cable 1x user manual
Specification
Input voltage: 7-28V
Frequency band: 5.8GHZ
Video format: NTSC
Camera resolution: 600TVL
Antenna connector: Dipole
Field of View: 120 degrees
Output power: 0.1mW / 25mW / 200mW / 400mW
Operating current: 90mA (0.1mW) 150mA (25mW) 270mA (200mW) 360mA (400mW)
Product Weight: 8g, Size(L x W x H): 24 x 15 x 10mm
Item Specification

Item model number Piggyback AIO Control Type Remote Control Are Batteries Included No Video Capture Resolution 600 Color Black Material Brass Item Weight 8 Grams Manufacturer recommended age 15 months and up Model Name Piggyback AIO Package Dimensions 3.7 x 2.44 x 1.61 inches

Dimensions Shipping Returns Additional Info

Product Dimensions: 2.44 inches x 3.7 inches x 1.61 inches. Weight: 8.0 grams
